Pumps, water treatment and site offices, pre-assembled and tested on our floor before shipment. Every skid arrives on forklift pockets, ready to set and connect.
Six packages. One duty each.
Single AODD Pump inSkid™
One Nomad air-operated double-diaphragm pump on a bolted stainless frame, with filter/regulator, lockout, solenoid and control enclosure pre-plumbed. 21-1/2 in wide, so it fits through a standard door.

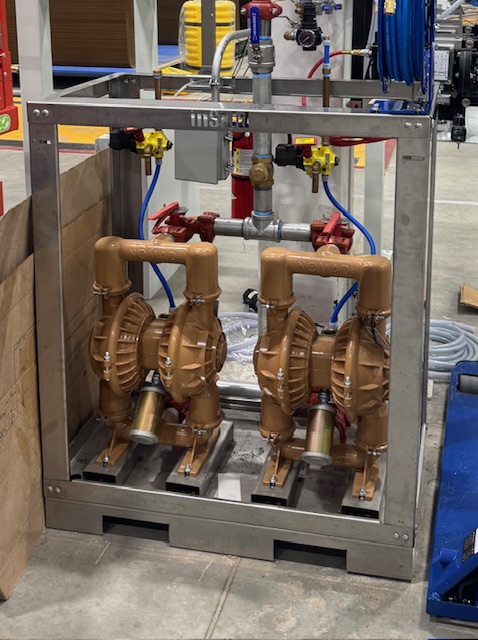

Double Pump ADP inSkid™
Two Nomad AODD pumps on shared suction and discharge headers with a check valve and butterfly valves on every pump. Run them together for flow or keep one in standby.
Dayton Controller Double Pump inSkid™
The ADP platform with a Dayton controller and an alarm beacon on the frame. Air prep, solenoids and lockouts come pre-plumbed to each pump.
Glue Skid inSkid™
A plastic AODD glue pump on a raised shelf, fed air from the trench and discharging back to it through stainless pipe. The 19-1/2 in square footprint fits tight spots on the corrugator floor.
Water Softener & Heater inSkid™
Softener feeds an A.O. Smith electric water heater, pre-piped in copper with isolation valves and a gauge. Soft cold and soft hot water from one frame. The brine tank sets alongside.
Expandable Pallet Office inSkid™
An insulated office on a 4-way pallet. It ships 48 in wide, and the two slide-outs open it to 90 in. Door, windows and a through-wall AC included. Forklift it where the crew needs it.
Custom inSkid™
Send the flow, lift, fluid and footprint. We draw it, build it, test it and ship it ready to set.
Self-contained. Ready to set.
- Skid is self-contained, with forklift pockets or runners.
- Bolted, formed stainless channel frame on the pump and glue skids.
- Air filter/regulator, lockout valve and solenoid pre-plumbed to every pump.
- Combined suction and discharge headers with check valve on dual-pump skids.
- Control enclosure mounted and wired on the frame.
- Slotted mounting rails and strut for easy plumbing and electrical runs.
- Self-Contained — Pre-assembled, ready for installation
- Strong — Bolted stainless or steel-tube frame
- Compact — Footprints from 19-1/2 in square
- Safe — Standard pneumatic lockout valves on every pump
- Easy to Place — Forklift pockets, runners or a 4-way pallet base
- Simple — A few connection points instead of a site full of trades
Frame envelopes
| Package | Drawing | Width | Depth | Height |
|---|---|---|---|---|
| Single AODD pump | ISK-SP-001 | 21-1/2 in | 24-1/2 in | 49-1/2 in |
| Double pump ADP | ISK-ADP-001 (PDF) | 42-3/4 in | 24-3/4 in | 55 in |
| Dayton controller double pump | ISK-DDAODD-001 (PDF) | 42-3/4 in | 24-3/4 in | 55 in |
| Glue skid | ISK-GS-001 (PDF) | 19-1/2 in | 19-1/2 in | 51-1/2 in (shelf at 33-1/2) |
| Water softener & heater | ISK-WSH-001 (PDF) | 30-3/4 in | 54-3/4 in | 84-1/4 in |
| Expandable pallet office | ISK-OFC-001 (PDF) | 48 in (90 in expanded) | 48 in | 85 in |
Click a drawing number to download the general arrangement PDF. Single pump drawing available on request.
AODD pump performance
| Pump size | Inlet / outlet | Gallons per minute | Air consumption | Inlet air size | Lift | Power requirement |
|---|---|---|---|---|---|---|
| 1-1/2 in | 1-1/2 in | 70 GPM | 30 scfm | 1/2 in | 30 ft | 120 VAC 15 AMP |
| 2 in | 2 in | 180 GPM | 50 scfm | 1/2 in | 30 ft | 120 VAC 15 AMP |
| 3 in | 3 in | 230 GPM | 60 scfm | 1/2 in | 30 ft | 120 VAC 15 AMP |
Per pump. Dual-pump skids double the flow when both pumps run in parallel.
Utility, environmental, construction, maintenance, industrial.
